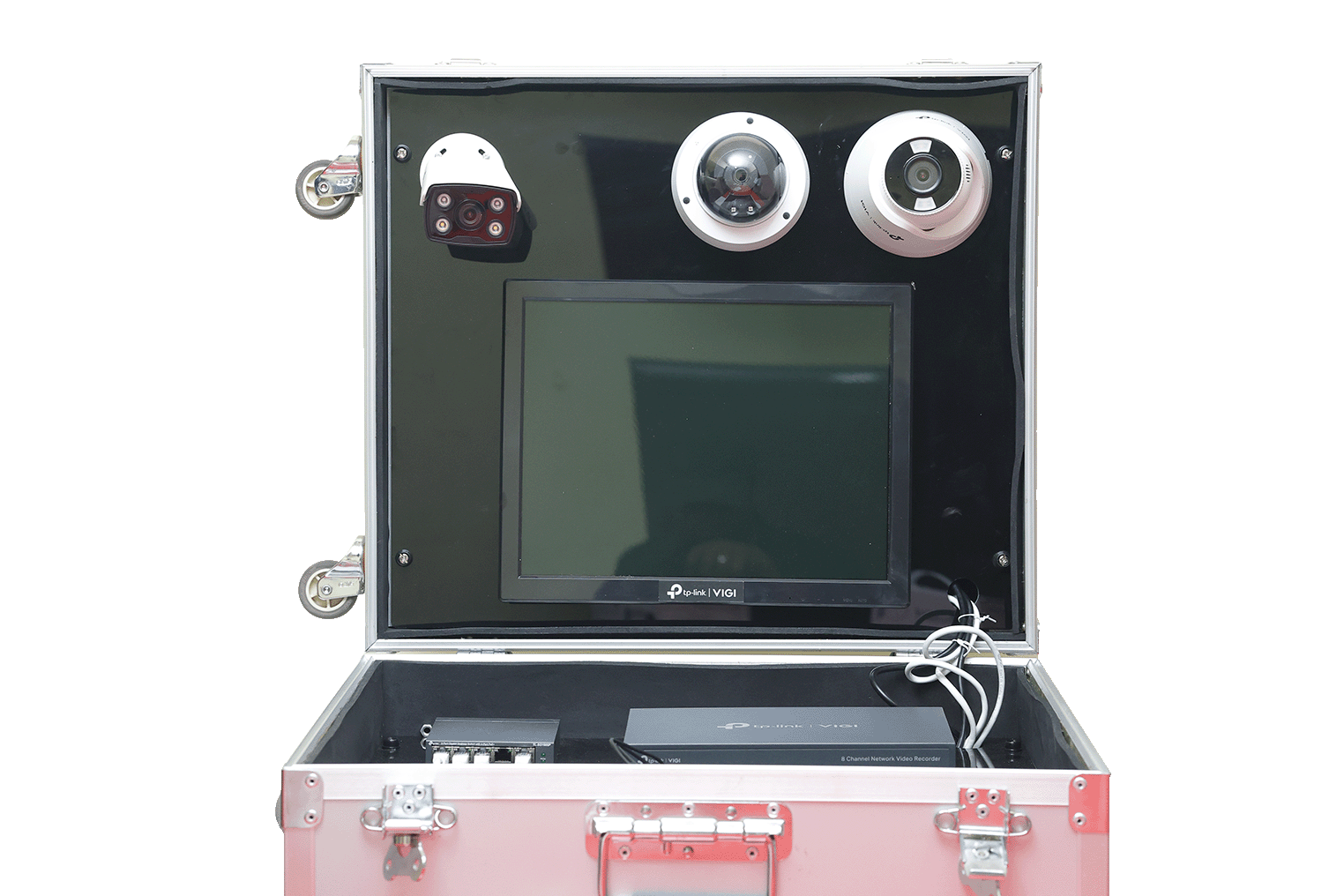

NVR Camera (Network Video Recorder)

This network video recorder offers top-notch security with features like smart detection, two-way audio, and quick playback. You can easily manage the system through various interfaces, ensuring compatibility and customization. Key features include enhanced monitoring, real-time audio communication, easy review of footage, clear 4K video output, large storage capacity, and a simple setup process. The VIGI NVR1008H is a dependable solution for keeping your business safe and well-monitored, allowing you to focus on growth.



Get Price Call Now

Full Specifications

NVR

Product Model VIGI NVR1008H



Video and Audio

IP Video Input 4-Channel / 8-Channel / 16-Channel
Incoming Bandwidth 80 Mbps
Outgoing Bandwidth 60 Mbps
HDMI Output Resolution 1 Channel,
Resolution: 3840×2160/30Hz, 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz
VGA Output Resolution 1 Channel,
Resolution: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz
Video Output Mode HDMI/VGA Simultaneous Output
Multi-View Display 1/4/6/8



Decoding

Audio Compression G.711A/G.711U/G.726
Video Compression H.265+/H.265/ H.264+/H.264
Record Resolution 8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Synchronous Playback 8-Channel
Capability 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP



Record Management

Record Mode Manual Recording,
Scheduling Recording,
Motion Detection Recording
Playback Mode Instant Playback,
Regular Playback,
Tag Playback,
Event Playback
Backup Mode Regular Backup,
Video Clip Backup
Playback Function Play,
Pause,
Stop,
Fast Forward,
Fast Backward,
Play By Frame,
Full Screen,
Video Clip,
Export Clip,
Digital Zoom,
Lock Recording,
Audio On/Off



Network

Network Protocols UPnP (Plug and Play),
NTP (Network Timing)
Interoperability ONVIF, CGI
Mobile Phone Access Android, iOS
Browser Chrome (57+), Firefox (52+), Edge (91+)



External Interface

Network Interface 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface 2× USB 2.0
Audio Interface 1, Audio In; 1, Audio Out
Alarm In/Out N/A
Serial Interface N/A
Power 1× DC Jack
Reset Button 1
Speaker N/A
eSATA N/A
HDMI 1
VGA 1



Hard Disk

SATA 1 SATA Interface
Capacity Up to 10 TB Capacity for Each HDD



Alarm

General Alarm Motion Detection,
Video Tampering,
Line-Crossing Detection,
Intrusion Detection,
Region Entering Detection,
Region Exiting Detection,
Object Abandoned/Removal Detection,
Vehicle Detection,
Human Detection,
Smart Frame
Anomaly Alarm Video Loss,
Offline and IP Conflict,
Disk Exception,
Login Exception
Alarm Linkage Recording,
White Light Alarm,
Buzzer,
Log,
Audible Alarm



General Package Contents

Package Contents VIGI Network Video Recorder,
Power Adapter,
HDD Screws,
Mouse,
Rubber Feet,
Quick Installation Guide
Power Supply DC 12V/1.5A
Max Power Consumption (Without Disk) 4.25 W
Working Temperature NVR: -10–55 °C
Power Adapter: 0–40 °C
Storage Temperature -40-70 °C
Working Humidity 10%~90% RH Non-Condensing
Storage Humidity 10%~90% RH Non-Condensing
Product Dimensions (W × D × H) 246.2 × 148.2 × 45 mm
Net Weight 0.59 kg
Gross Weight 0.95 kg
Certification CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
