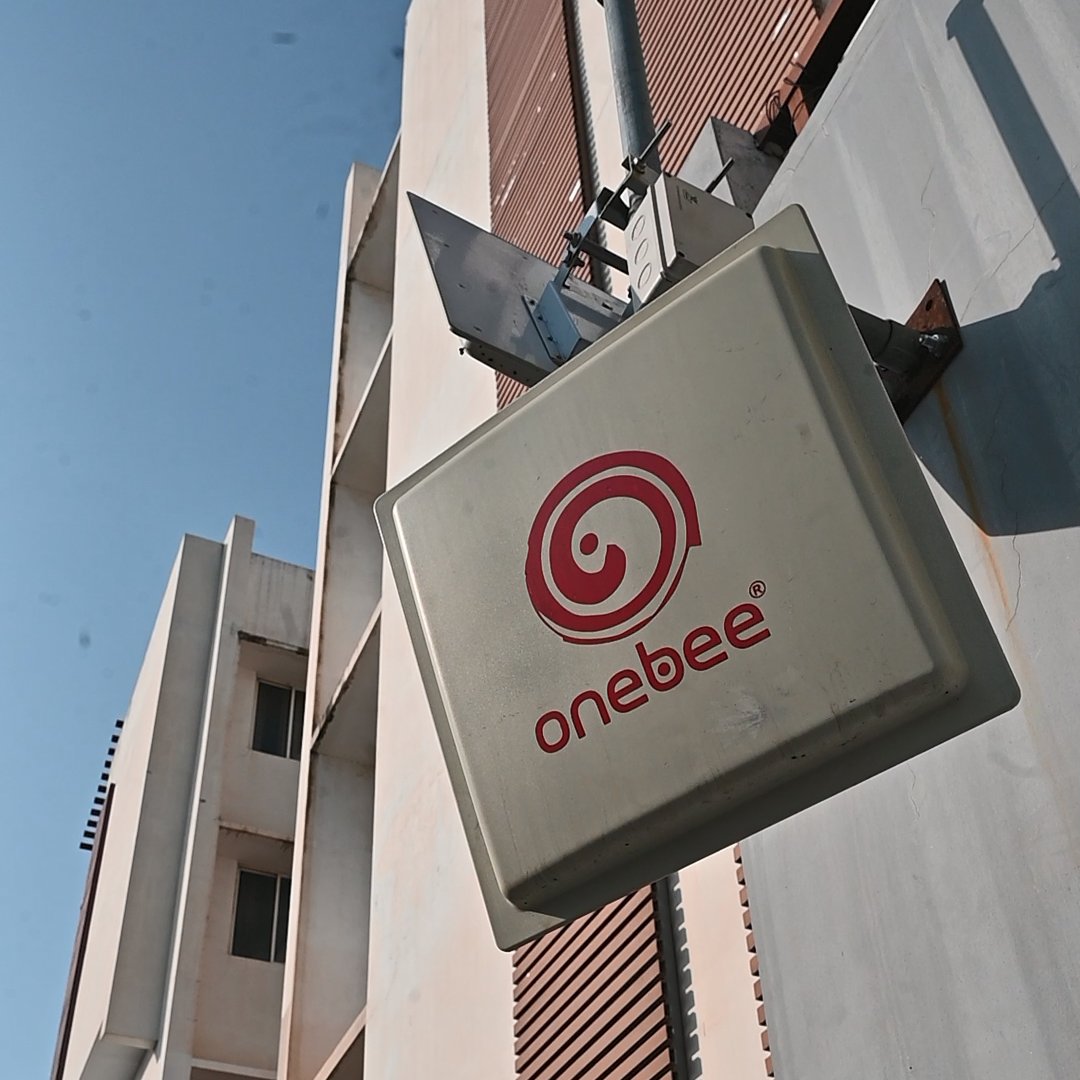

UHF Reader
The UHF RFID reader is an RFID long-range proximity card reader which can simultaneously read multiple passive UHF tags at ranges up to 12m.
The reader is waterproof and is suitable for use in a wide range of RFID applications, such as transport management, vehicle management, car parking, production process control, and access control.
Full Specifications
| Model | UHF-312 |
| Dimension (mm) | 445 x 445 x 55 |
| Reading distance | 0 - 12m |
| Communication Interface | RS232, RS485, Wiegand 26/34 (TCP/IP Optional) |
| Frequency | Standard ISM 865 - 868MHz, 902 ~ 928MHz (Customizable) |
| Working Voltage | 100 - 240V, DC +9V (Power Adapter) |
| Working Temperature | -25°C to 60°C |
| Interface Protocol | ISO18000-6B, EPC Class 1 Gen2 (ISO18000-6C) |
| Humidity | 5% RH - 95% RH non condensing |
| Working mode | Always read / Trigger read |
| I/O Interface | Supports external trigger |
| Maximum power consumption | <3W (RF output 26dBm, multiple tags), <2W (RF output 26dBm, Single tags) |
